GPL-S-384

GPL-S-384
GPL-S-384
SKU
GPL-S-384

Categories
Seismic Range

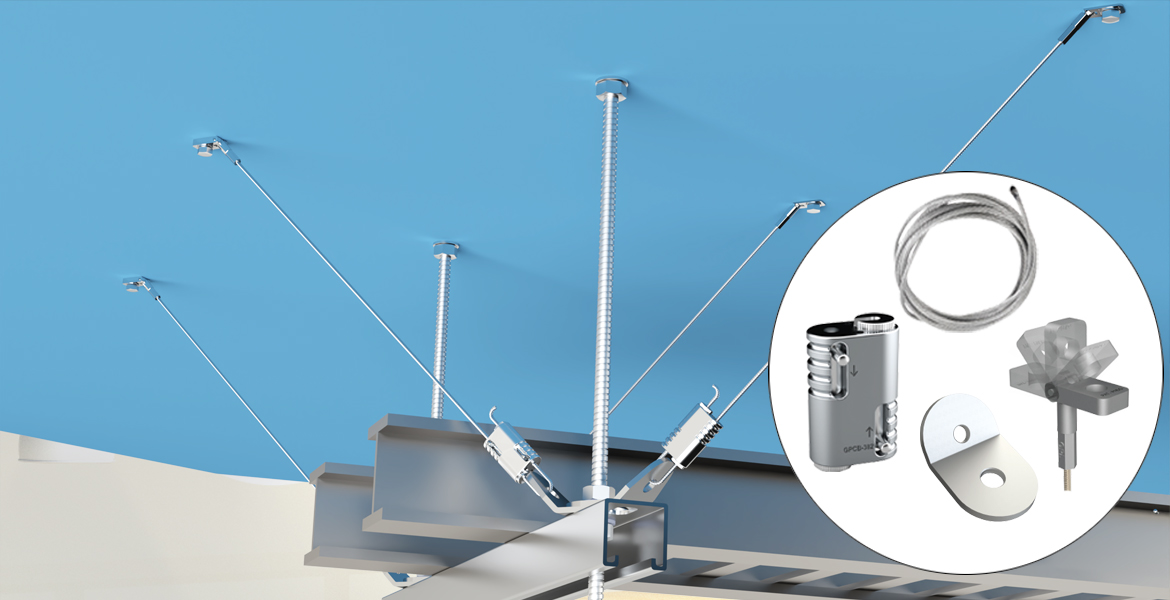

The GPL seismic cable bracing system is a set of cables strategically placed within a structure to provide additional lateral support. These cables are tensioned and anchored to key structural components, working together to absorb and distribute seismic forces. It is used as a bracing system for suspended nonstructural components, equipment and systems. This system is particularly effective in tall or expansive structures, where the magnitude of lateral movement during an earthquake can be substantial.

GPL SEISMIC KIT

CABLE DIAMETER

CABLE ORIENTATION ANGLE(Horizontal)

ALLOWABLE STRENGTH DESIGN ( ASD ) KG/LBS

MAXIMUM DESIGN STRENGTH ( LRFD) KG/ LBS

GPL-S-384

4.8mm/ 3/16”

30°

697kg, 1537lbs

1045kg, 2304lbs

GPL-S-384

4.8mm/ 3/16”

45°

1008kg, 2222lbs

1512kg, 3333lbs

GPL-S-384

4.8mm/ 3/16”

60°

1178kg, 2597lbs

1767kg, 3896lbs

Seismic cable kit includes:

  • Galvanized wire in different dia. - 2.0, 3.2, 5.0, & 6 mm
  • Pre-attached eyelet
  • Standard Bracket
  • Aluminum loop cable blocker with lock nut
  • Color coded tags - GPL seismic bracing system are color coded to allow easy field verification of cable diameter, each color representing a different load     bearing capacity.

Features & Benefits:

  • Kits includes pre-attached swivel eyelet with wire assembly, loop gripper & bracket.
  • Available in different wire lengths for 3, 5, 10mtr.
  • Color tags for easy identification of cable size & load bearing capacity.
  • Tested & certified by leading technical university “IIT, Roorkee”.
  • The Safe load carrying capacity of each kit is determined as per IS 800 (2007)
  • The equivalent standards are AISC 360 (2010), EN 1993 Eurocode 3, and NZS 3404 (1997)
  • Save up to 50% on installation time and 10 times faster than traditional methods.
  • No tool required.
  • Perfect for new or retrofit applications.
  • Light weighted kit, easy to carry on the job site.

Installation:

  • Attach Seismic Anchor Bracket to ceiling structure with appropriate anchor as per manufacturer’s instructions, following qualified Structural Engineer’s recommendations/calculations.
  • Pass wire rope through GPL seismic locking device.
  • Fit Anchor bracket to existing primary supports at designated locations, ensuring bracket orientation is correct.
  • The Loop wire through available hole in the bracket and position wire against through hole.
  • Feed wire back into GPL seismic locking device & tighten the lock for extra safety.
  • Apply tension.
  • Coil excess wire and secure to main brace if necessary trim excess wire leaving 150mm tail.
